- 20X Optical Zoom PTZ Camera with a high-quality 1/2.8 Inch HD CMOS Sensor
- 16:9 aspect ratio, 2.07 megapixels, 20X optical zoom, 10X digital zoom, 3.2° (Tele) to 56° (Wide) view angle, AV- F1.5 – F3.0
- Video resolutions: SDI, HDMI - 1080P60, 1080P50, 1080I60, 1080I50,1080P30; USB 3.0 (Type B compatible with USB2.0)
- Main stream formats: YUY2/MJPEG/NV12/H.264/H.265 supports 1920×1080P30, 1280×720P30
- Features: Minimum illumination of 0.5Lux (F1.8, AGC ON), 2D & 3D DNR, Auto/Manual/One Push White Balance, Auto/Manual Focus, Dynamic Level Adjustment, BLC-ON/OFF, and various video adjustments
- Pan/Tilt: Rotation ±170°, -30° to +90°, Pan control speed 0.1-100°/sec, Tilt control speed 0.1-45°/sec, preset speed Pan 100°/sec, Tilt 45°/sec, 255 presets
- Outputs: 3G-SDI, HDMI, 0, LAN (optional PoE)
- Network interfaces: 265, H.264, Dual Stream Output, 100M IP Port (100BASE-TX), and several network protocols.
- Audio: Double Track 5mm Linear Input, Audio Compression Format - AC/MP3/G.711A

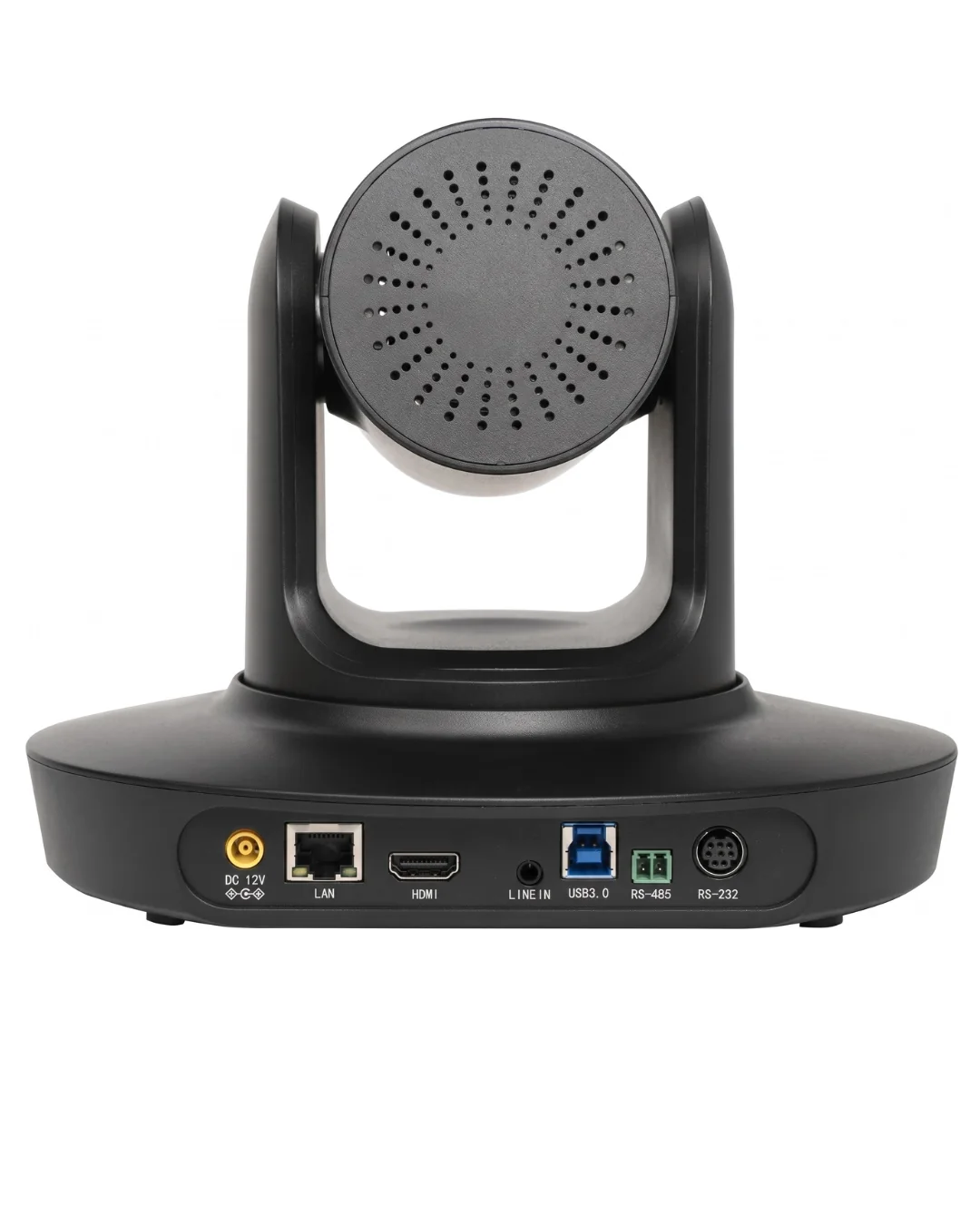

- Control interfaces: RS232 (Input & Output), RS485, Power Interface - HEC3800 outlet (DC12V)
All / Camera
Vastline 41HP 4K PTZ Camera
VASTLINE 41HP Ultra HD 4K camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth,high resolution, and fantastic colour rendition. It supports for H.265/H.264 coding, making the image smoothand clear even in low-bandwidth.
Availability and exact specifications are confirmed by our team.
